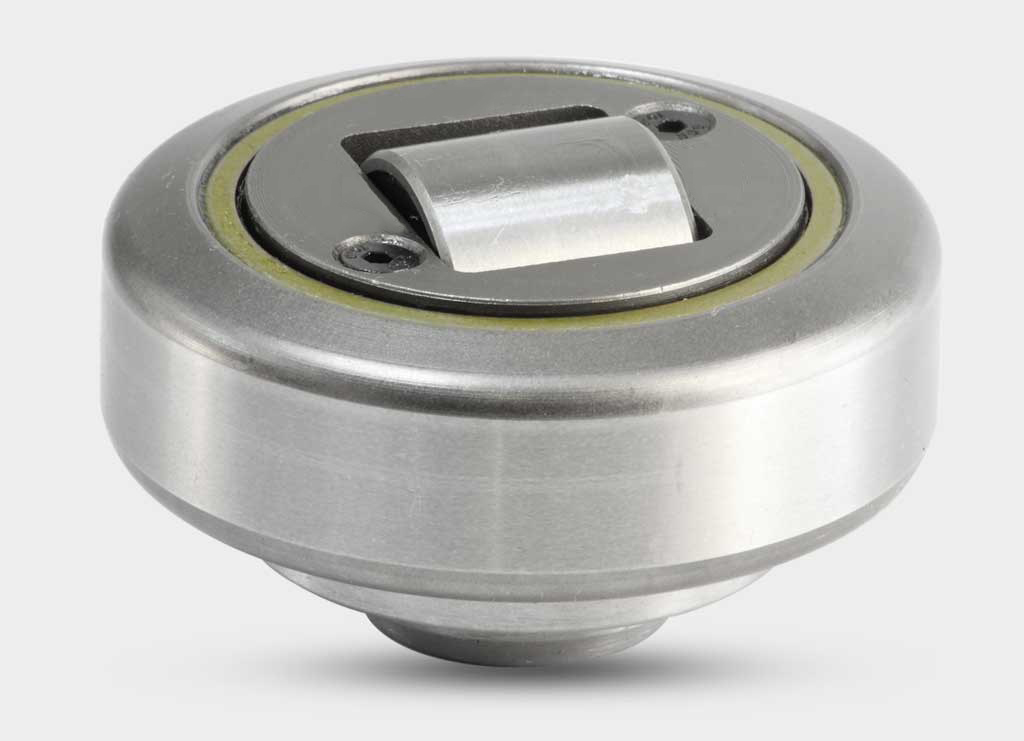

Axial eccentric adjustable Combined Roller Bearings

Axial eccentric adjustable Combined Roller Bearings

There are three types of adjustable combination bearings with eccentric pins.
The first type is a pin with gears on both ends.
The second type with an octagonal pin.
The third type is pin with positioning holes.
But they all adjust by rotating the entire axial component (the pin and the small roller) in the stud.
Consult now
  • Detailed Description

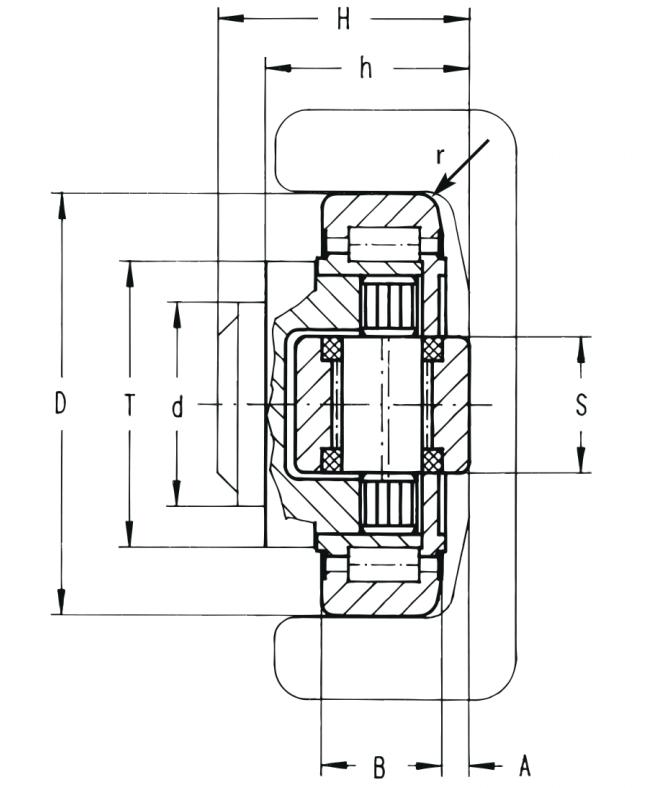

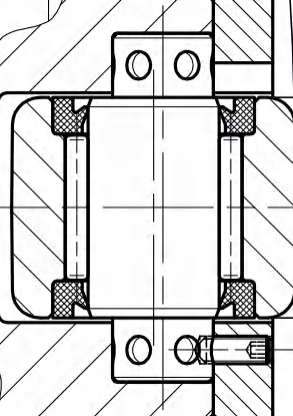

3-23-3

偏心轴可调复合滚轮轴承
Axial eccentric adjustable Combined Roller Bearings
型号
Model		 外形尺寸 (mm)
BOUNDARY DIMENSIONS (mm)		 载荷(KN)
 RATING (KN)		 重量 (KG)
WEIGHT (KG)		 铁板
Flange plates		 配套导轨
Profiles standard		 可选外径尺寸(mm)
Optional Outer Diameter size(mm)
Germany Italy D T d H h B S C  C0  CA  C0A
4.454 KRES062 62.5 42 30 37.5-39 30.5-32 20 20 31 35 11 11 0.55 AP0 AP0-Q 0 NbV 62.64.8
4.455 KRES070 70.1 48 35 44-45.5 36-37.5 23 20 45 51 13 14 0.8 AP1 AP1-Q 1 NbV 70.35.73.8
4.456 KRES078 77.7 54 40 48-49.5 37-38.5 23 26 48 57 18 18 1 AP2 AP2-Q 2 NbV 77.7.81.8
4.457   77.7 54 40 40-41.5 29-30.5 23 26 48 57 18 18 0.87     77.7.81.8
4.458 KRES089 88.4 59 45 57-58.5 44-45.5 30 26 68 72 23 23 1.62 AP3.1 AP3-Q 3 NbV 88.88.9.92.8
4.459   101.6 69 50 46-48 33-35 26 30 73 82 25 27 1.74     101.2
4.460    107.7 69 55 54-56 40-42 31 30 81 95 31 36 2.27     108.55.111.8
4.461 KRES108 107.7 69 60 69-71 55-57 31 30 81 95 31 36 2.82 AP4 AP4-Q 4 NbV 108.55.111.8
4.462 KRES123 123 80 60 72.3-76.3 56-60 37 34 110 132 43 50 3.6 AP4 AP4-Q 5 NbV 127.8
4.463 KRES149 149 108 60 77.5-81.5 58.5-62.5 45 34 151 192 68 71 6.3 AP6 AP6-Q 6 NbV 149.4.153.8
4.085   180 124 100 95.7-98.7 76.3-79.3 57.3 60 207 243 73 83 11.5 AP 90-Q
4.089 MR0038 165 113 80 69-72 53-56 40 50 213 388 85 133 9.2 AP 89-Q
4.090  MR0012 190 124 100 84.5-87.5 64.5-67.5 48 60 266 500 100 180 10.6 AP 90-Q
4.091 MR0013 220 146 110 94.5-97.5 74.5-77.5 58 75 326 681 138 257 17.3 AP 91-Q
4.092 MR0014 250 168 120 102-105 77-80 60 75 369 748 138 257 23.9 AP 92-Q
4.093 MR0015 280 188 150 119.5-123.5 89.5-93.5 72 90 489 1066 182 488 36 AP 93-Q
4.094   320 218 150 135-139 110-114 85 90 542 1370 210 422 50 AP 94-Q
4.095   340 240 140 150-154 120-124 89 100 752 1700 232 463 75 AP 95-Q
4.096   390 242 170 200-204 150-154 118 100 1050 2243 232 463 118 AP 96-Q
