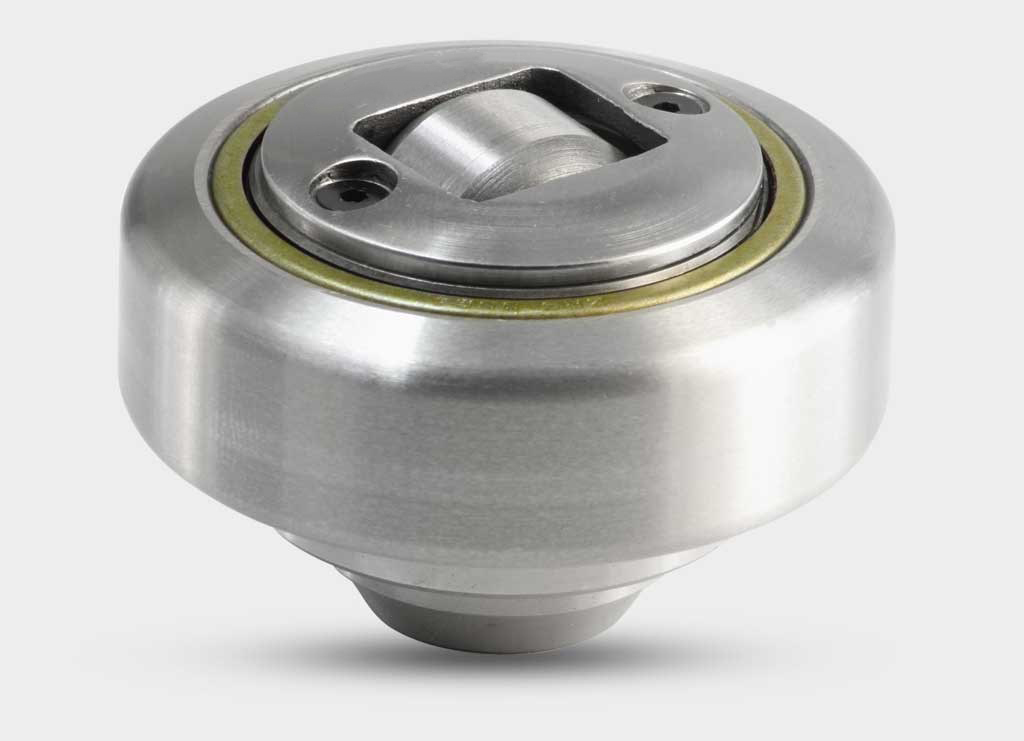

| 垫片可调复合滚轮轴承 Axial adjustable Combined Roller Bearings by shims |
||||||||||||||||
| 型号 Model Also can choose POM |

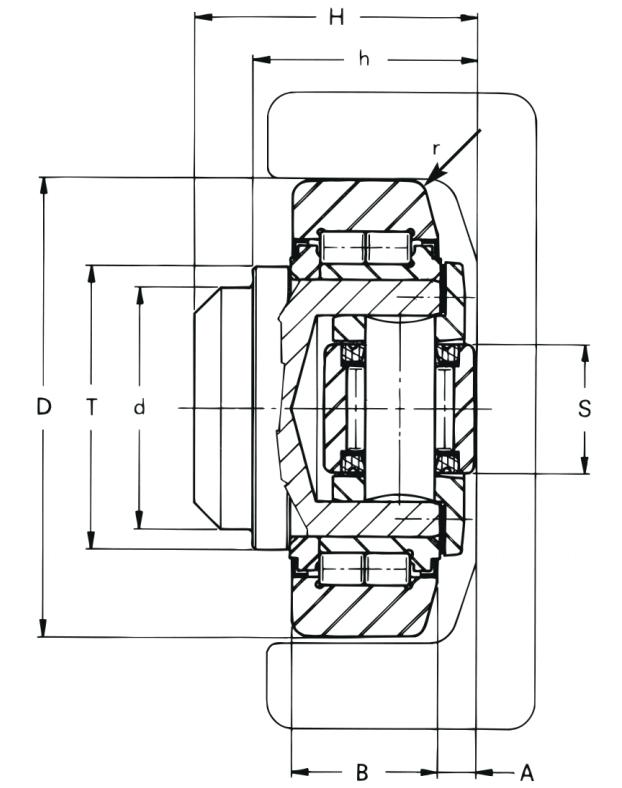

外形尺寸 (mm) BOUNDARY DIMENSIONS (mm) |
载荷(KN) RATING (KN) |
重量 (KG) WEIGHT (KG) |
铁板 Flange plates |
配套导轨 Profiles standard |
可选外径尺寸(mm) Optional Outer Diameter size(mm) |
||||||||||
| Germany | Italy | D | T | d | H | h | B | S | C | C0 | CA | C0A | ||||
| 4.072 | MR146 | 62.5 | 42 | 30 | 43 | 33 | 20 | 16 | 31 | 35.5 | 8 | 8 | 0.56 | AP0 AP0-Q | 0 NbV | 62.64.8 |
| 4.073 | MR147 | 70.1 | 48 | 35 | 48 | 40 | 23 | 16 | 45.5 | 51 | 14 | 14 | 0.85 | AP1 AP1-Q | 1 NbV | 70.35.73.8 |
| 4.074 | MR148 | 78.1 | 54 | 40 | 50.5 | 39.5 | 23 | 21 | 48 | 56.8 | 14 | 14 | 1.02 | AP2 AP2-Q | 2 NbV | 77.7.81.8 |
| 4.075 | MR148 | 77.7 | 54 | 40 | 45 | 34 | 23 | 21 | 48 | 56.8 | 14 | 14 | 0.92 | 78.1.81.8 | ||
| 4.076 | MR150 | 88.4 | 59 | 45 | 61 | 48 | 30 | 21 | 68 | 72 | 15 | 15 | 1.69 | AP3.1 AP3-Q | 3 NbV | 88.88.9.92.8 |
| 4.077 | 101.2 | 67 | 50 | 50.5 | 37.5 | 28 | 21 | 73 | 82 | 18 | 19 | 1.85 | ||||
| 4.078 | 107.7 | 71 | 55 | 58.5 | 44.5 | 31 | 33 | 81 | 95 | 31 | 36 | 2.38 | 3100 NbV | 108.55.111.8 | ||
| 4.0784 | MR142 | 107.7 | 71 | 60 | 69 | 55 | 31 | 33 | 81 | 95 | 31 | 36 | 2.80 | AP4 AP4-Q | 4 NbV | 108.55.111.8 |
| 4.079 | MR153 | 123 | 80 | 60 | 75.5 | 59.5 | 37 | 33 | 110 | 132 | 35 | 38 | 4.08 | AP4 AP4-Q | 5 NbV | 127.8 |
| 4.080 | MR154 | 149 | 103 | 60 | 88 | 69 | 45 | 50 | 151 | 192 | 68 | 71 | 6.70 | AP6 AP6-Q | 6 NbV | 153.8 |
