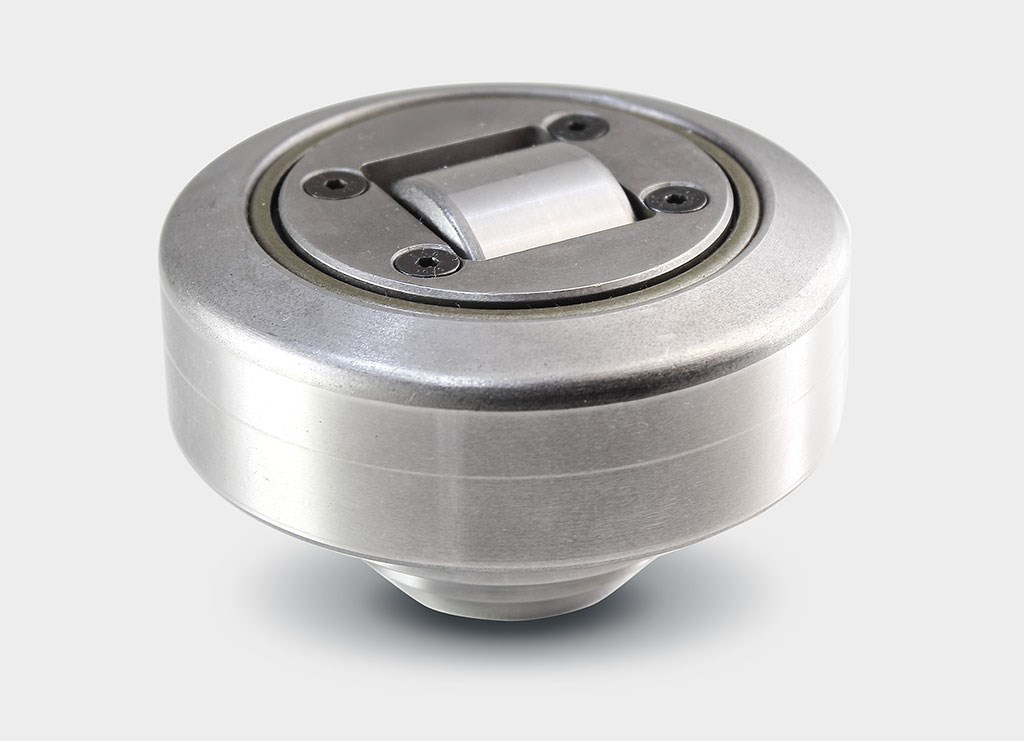

Axial Fixed Combined Roller Bearings

Axial Fixed Combined Roller Bearings

Fixed combined bearings are particularly suitable to be used in forklift masts and in any other moving and handling system, where rolled or extruded profiles are used.
The best combination axial part/radial part allows to get high load capacity with extremely small dimensions of the bearing, in addition to easiness of assembling on any kind of structure.
Consult now
  • Detailed Description

4-2

轴向固定复合滚轮轴承
Axial Fixed Combined Roller Bearings
型号
Model		 外形尺寸 (mm)
BOUNDARY DIMENSIONS (mm)		 载荷(KN)
 RATING (KN)		 重量(KG)
WEIGHT (KG)		 铁板
Flange plates		 配套导轨
Profiles standard		 可选外径尺寸(mm)
Optional Outer Diameter size(mm)
Germany Italy D T d H h B S C  C0  CA  C0A
4.053 MR0706 52.5 40 30 33 27 17 15 24 32 7 7 0.36  APS.APS-Q
4.054 MR0430 62.5 42 30 37.5 30.5 20 20 31 35.5 11 11 0.55  AP0 AP0-Q 0 NbV 62.64.8
4.055 MR0022 70.1 48 35 44 36 23 22 45.5 51 13 14 0.80  AP1 AP1-Q 1 NbV 70.35.73.8
4.056 MR0023 77.7 54 40 48 36.5 23 24 48 56.8 18 18 1.00  AP2 AP2-Q 2 NbV 78.1.81.8
4.057 MR0024 77.7 53 40 40 29 23 24 48 56.8 18 18 0.87  AP2 AP2-Q 2 NbV 78.1.81.8
4.058 MR0025 88.4 59 45 57 44 30 26 68 72 23 23 1.62  AP3.1 AP3-Q 3 NbV 88.88.9.92.8
4.059   101.2 67 50 46 33 28 30 73 82 25 27 1.74
4.060  MR0026 107.7 71 55 53 39 31 34 81 95 31 36 2.27    3100 NbV
4.061 MR0027 107.7 71 60 69 55 31 34 81 95 31 36 2.82  AP4 AP4-Q 4 NbV 108.55.111.8
4.062 MR0029 123 80 60 72.3 56 37 40 110 132 43 50 3.89  AP4 AP4-Q 5 NbV 127.8
4.063 MR010 149 103/108 60 78.5 58.5 45/43 50 151 192 68 71 6.52  AP6 AP6-Q 6 NbV 153.8
4.064 MR191 149 103/108 60 86 67 45 50 151 192 68 71 7.00      153.8
4.037   174 120 80 95 71 55 62 284 563 185 321 10.70
4.039   185 120 80 95 71 55 62 284 570 200 355 12.00
