| 型号 Model |

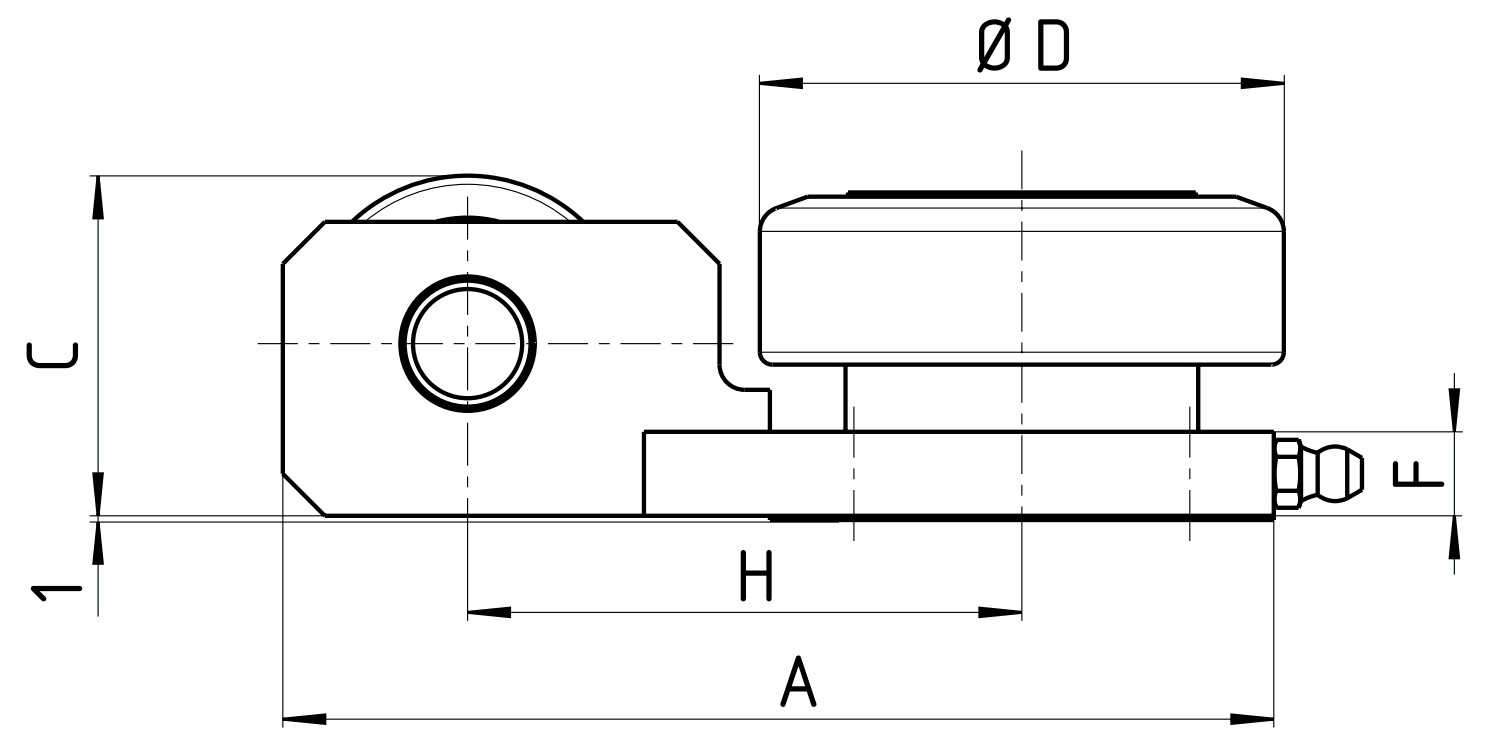

外形尺寸 (mm) BOUNDARY DIMENSIONS (mm) |
重量 (KG) WEIGHT (KG) |
配套导轨 Profiles standard |
可选外径尺寸(mm) Optional Outer Diameter size(mm) |
|||||||||
| Germany | D | A | B | C | E | F | G | H | I | J | |||
| 3.054 | 62.5 | 118 | 60 | 40.5 | 75 | 10 | 40 | 66 | 45 | M10 | 1.4 | 0 Nbv | 62/64.8 |
| 3.055 | 70.1 | 135 | 80 | 52 | 95 | 15 | 50 | 73 | 55 | M12 | 2.3 | 1 Nbv | 70.35/73.8 |
| 3.056 | 77.7 | 135 | 80 | 52 | 95 | 15 | 50 | 73 | 55 | M12 | 2.6 | 2 Nbv | 78.1/81.8 |
| 3.058 | 88.4 | 188 | 120 | 64 | 120 | 20 | 90 | 95 | 60 | M16 | 5.5 | 3 Nbv | 88/88.9/92.8 |
| 3.061 | 107.7 | 193 | 120 | 75 | 125 | 20 | 90 | 100 | 65 | M16 | 6.8 | 4 Nbv | 108.55/111.8 |
| 3.062 | 123 | 240 | 120 | 76 | 165 | 20 | 80 | 143 | 105 | M16 | 9.6 | 5 Nbv | 127.8 |
| 3.063 | 149 | 265 | 150 | 78.4 | 190 | 20 | 100 | 153 | 115 | M16 | 13.6 | 6 Nbv | 153.8 |
