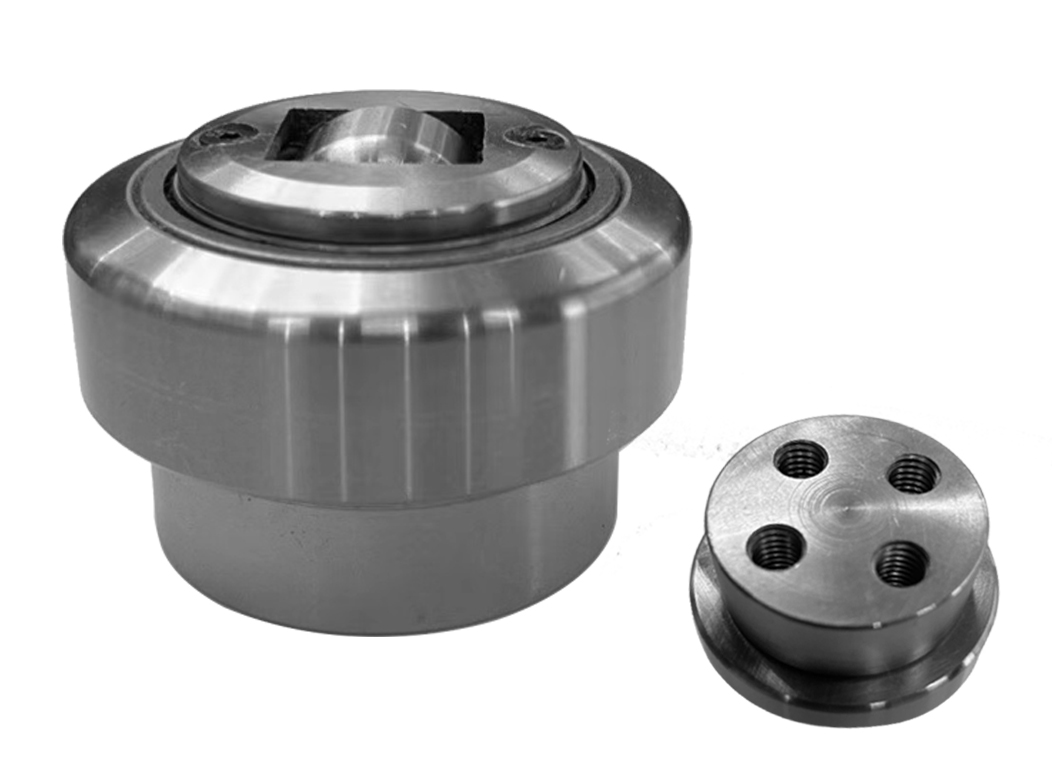

| 型号 Model Also can choose POM |

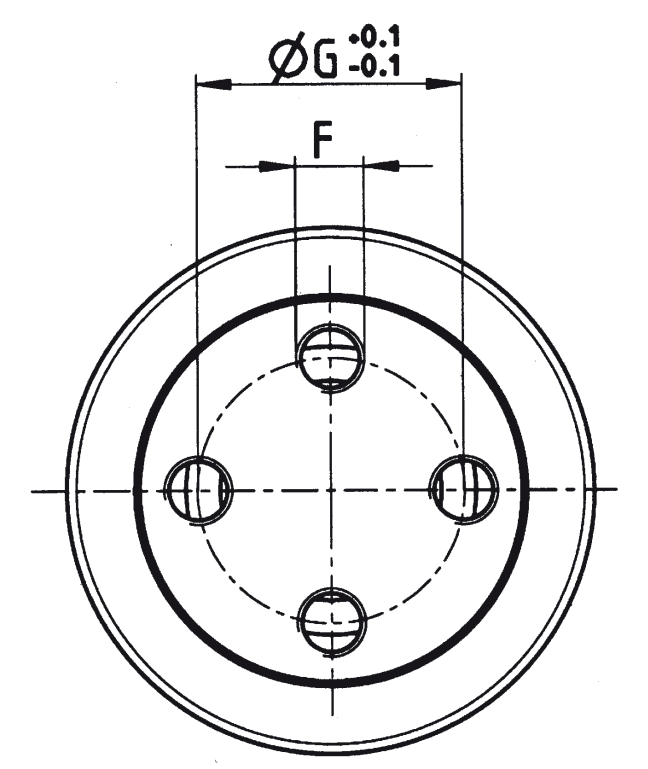

外形尺寸 (mm) BOUNDARY DIMENSIONS (mm) |
载荷(KN) RATING (KN) |
重量 (KG) WEIGHT (KG) |
配套导轨 Profiles standard |
可选外径尺寸(mm) Optional Outer Diameter size(mm) |
|||||||||
| Germany | B | A | C | D | E | F | G | C | C0 | CA | C0A | |||
| KB 4.072 | 62.5 | 43 | 50 | 17.5 | 20 | M 10*13 | 30 | 31 | 35.5 | 8 | 8 | 0.65 | 0 Nbv | 62/64.8 |
| KB 4.073 | 70.1 | 55 | 60 | 25.5 | 23 | M 12*18 | 40 | 45.5 | 51 | 14 | 14 | 1.1 | 1 Nbv | 70.35/73.8 |
| KB 4.074 | 78.1 | 54.5 | 60 | 24.5 | 23 | M 12*18 | 40 | 48 | 56.8 | 14 | 14 | 1.2 | 2 Nbv | 78.1/81.8 |
| KB 4.076 | 88.4 | 68 | 70 | 31 | 30 | M 14*20 | 44 | 68 | 72 | 15 | 15 | 2.05 | 3 Nbv | 88/88.9/92.8 |
| KB 4.0784 | 107.7 | 75 | 80 | 36 | 31 | M 14*22 | 54 | 81 | 95 | 31 | 36 | 3.2 | 4 Nbv | 108.55/111.8 |
| KB 4.079 | 123 | 79.2 | 100 | 34.2 | 37 | M 16*23 | 60 | 110 | 132 | 35 | 38 | 4.9 | 5 Nbv | 127.8 |
| KB 4.080 | 149 | 89 | 120 | 29 | 45 | M 16*23 | 80 | 151 | 192 | 68 | 71 | 8 | 6 Nbv | 153.8 |
